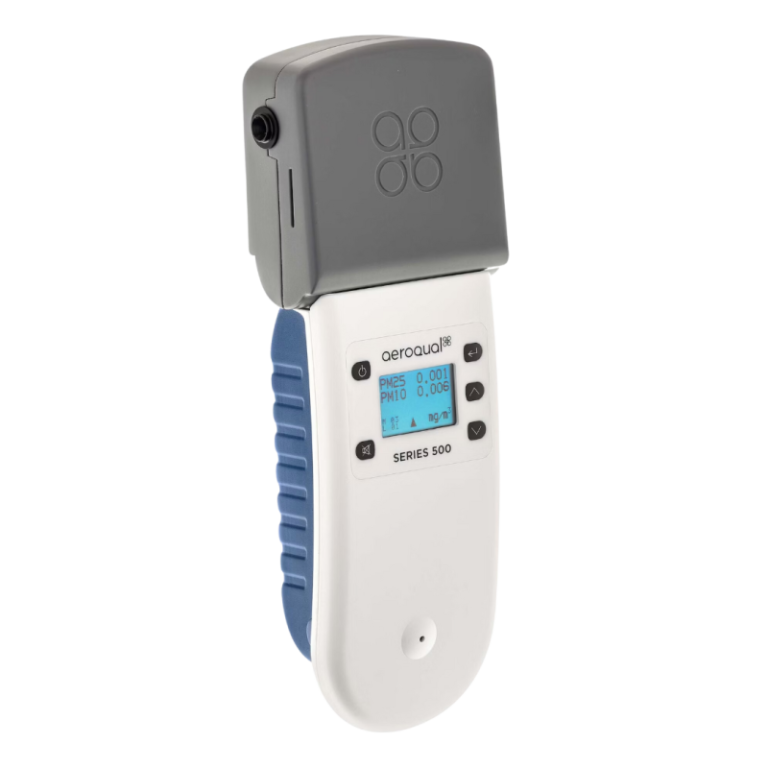

Aeroqual S500 PM10 / PM2.5

The Aeroqual PM10 / PM2.5 Portable Particulate Monitor provides accurate and simultaneous real-time measurement of PM10 and PM2.5 in ambient outdoor and indoor environments. Measure gaseous pollutants by simply swapping the PM sensor head for the gas sensor head of your choice (gas sensor heads available separately). Suitable for use on a range of projects, including indoor / outdoor air quality testing, personal exposure monitoring, and short-term fixed monitoring.

The PM10 / PM2.5 Portable Particulate Monitor is a truly handheld portable monitor that measures PM10 and PM2.5 in real-time. Compatible with Aeroqual’s Series 200/300/500 air quality monitors, the PM sensor head uses a laser and optical sensor to measure light scattered from particles passing through the laser beam. The optical sensor transforms scattered light into electrical signals which are processed to provide mass measurements – in this case PM2.5 and PM10.

The PM sensor head is supplied factory-calibrated and ready to use. An electrical signal is passed from the sensor head to the Aeroqual Series 200/300/500 base unit which displays the measurements on the screen in milligrams per cubic metre (mg/m3). In the case of the Series 300 and 500 base units, a gain (or K factor) can be applied to the sensor output. This allows users to adjust the readings relative to a trusted source such as EPA-approved reference monitor.

In the Series 500 model, measurements can be stored on the device and downloaded later to a computer via the USB cable and bundled software. The Series 500 is also featured in our new Outdoor Air Quality Test Kit and Indoor Air Quality Test Kit, a convenient way to test multiple gases and particulates in the air around you.

What can it measure?

The PM10 / PM2.5 Portable Particulate Monitor measures PM10 and PM2.5 simultaneously, with the option of adding gaseous sensor heads to measure up to 16 different pollutants (CO, CO2, NO2, VOC, O3, SO2, H2S and more.)

This product includes:

  • PM sensor head
  • Monitor base
  • LCD digital display
  • Lithium battery and charger
  • In-built datalogger
  • Monitor to USB cable
  • PC software
