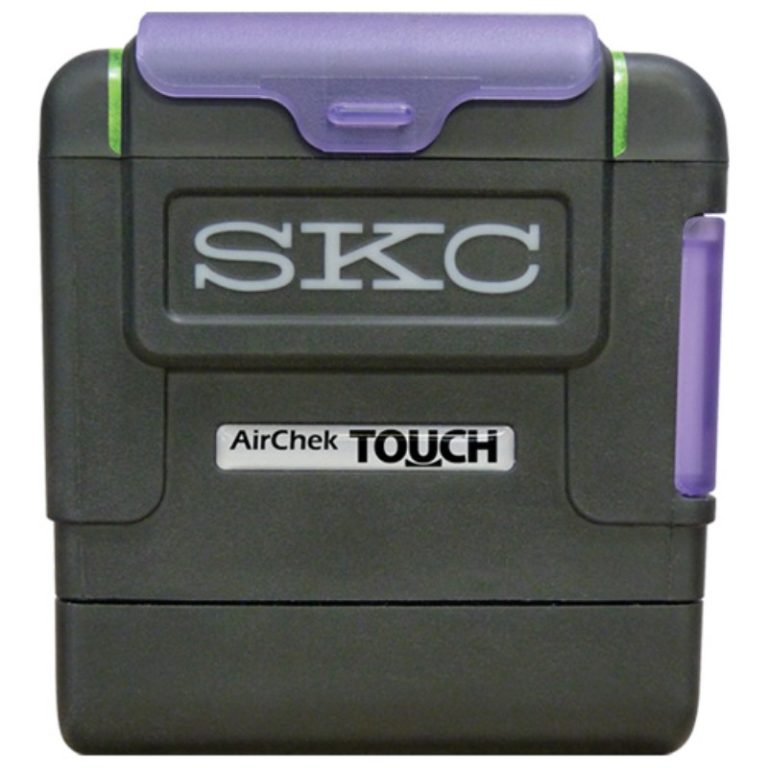

AirChek Touch

The SKC AirChek® TOUCH air sample pump is the first personal sampling pump with color touch screen navigation. Ultra-quiet and tough, AirChek TOUCH provides extended flows from 5 to 5000 ml/min and high back pressure compensation for your industrial hygiene applications. Programming continuous, timed, and intermittent sampling is easy – no operating manual needed. A powerful Li-Ion battery provides long run times. Charging, calibration (including CalChek hands-free), and PC communication are made easy with all-in-one cradles. Use AirChek TOUCH with DataTrac Pro Software for easy pump programming and advanced reporting.

Performance Profile

Flow Range Constant flow from 1000 to 5000 ml/min
(low flow from 5 to 500 ml/min requires holder)
Compensation Range
(back pressure capability)
5000 ml/min at 20 inches water back pressure
4000 ml/min at 30 inches water back pressure
3000 ml/min at 40 inches water back pressure
2000 ml/min at 50 inches water back pressure
1000 ml/min at 50 inches water back pressure
Flow Control System Isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
Power Removable rechargeable Lithium-ion (Li-Ion) battery, 7.4 V 2.6 Ah, 19.2 Wh or AC using charging cradle
Run Time 20 hours at 2000 ml/min
10 hours at 5000 ml/min
Indefinite run from charging cradle
Charging Time
(varies with battery capacity and level of discharge)
Approximately 3 hours
Accuracy Flow control: ± 5% of set-point after calibration to desired flow
Atmospheric pressure: ± 0.3 in Hg
Temperature: ± 1 C
Temperature Ranges Operating: 32 to 104 F (0 to 40 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 113 F (-20 to 45 C)
Humidity Ranges Operating: < 95% RH, non-condensing
Storage: < 95% RH, non-condensing
Altitude Corrects flow for changes in temperature (32 to 104 F/ 0 to 40 C) and ambient pressure up to 15,000 feet (4,572 meters) above and down to 4,500 feet (1,372 meters) below sea level
Display/parameters Color LCD/real-time flow rate, ambient temperature, ambient pressure, accumulated volume, elapsed time
User Interface Resistive touch screen with auto-dim and locking options
Sound Level Average 51.7 dB at 3-ft (1-m) distance using a 37-mm 0.8-µm MCE filter cassette
Dimensions 4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm)
Weight 19.4 oz (550 gm)
Certifications
  • Intrinsic safety: UL class I, Div. 1, Groups A, B, C, and D; Class II, Div 1, Groups E, F, and G; Class III, Div. 1, hazardous locations when used with SKC battery pack model P75718; T-code T3C. Exia; Class I, Zone 0 Gp IIC (SKC Cat. No. 220-5000TC)
  • RoHS compliant
  • CE Marked
Case Material Polycarbonate with rubberized anti-static overmolding
 Tested using 37-mm 0.8-µm MCE filter with new pump and battery. Pump performance may vary.
