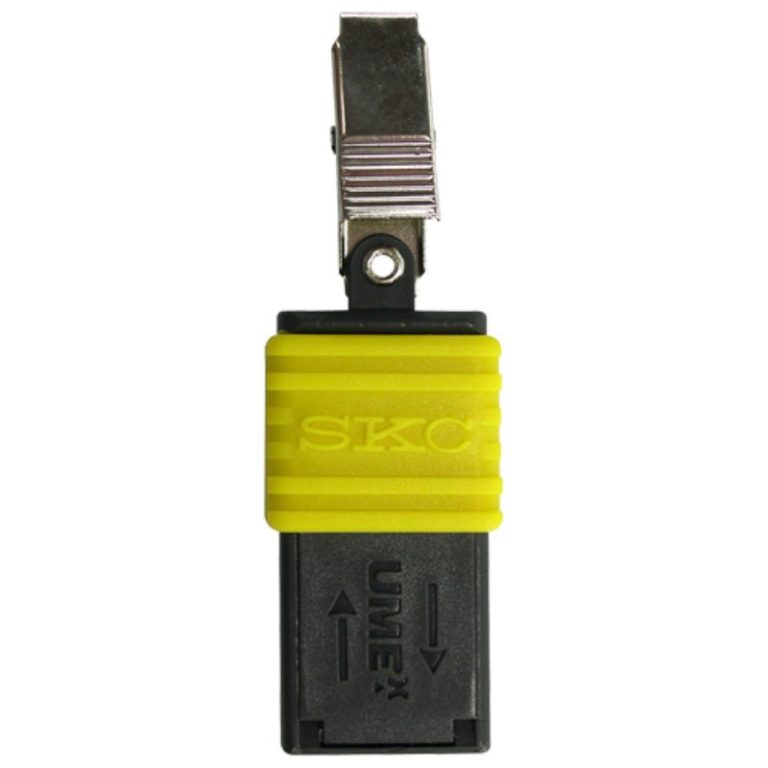

Passive Samplers UMEx 200 for Sulfur and Nitrogen Dioxide

The UMEx 200 Passive Sampler collects sulfur dioxide (SO2) at 15.2 ml/min and nitrogen dioxide (NO2) at 17.3 ml/min. The UMEx 200 contains a tape treated with triethanolamine (TEA) and “blank” to sample from 15 minutes to 24 hours. Analysis is performed by ion chromatography (IC) with conductivity detection

Download Brochure

Performance Profile

Sampling Rate SO215.2 ml/min with a relative standard deviation of 16.5%
NO217.3 ml/min with a relative standard deviation of 11.4%
Validated Concentration Range SO20.4 to 8 ppm
NO20.051 to 8.5 ppm
Analysis Method Solvent extraction and ion chromatography with conductivity detection
Lower Detection Limits SO2  15 min: 1.8 ppm
8 hrs: 52 ppb
24 hrs: 17.4 ppbNO2: 15 min: 0.2 ppm
8 hrs: 6.3 ppb
24 hrs: 2 ppb
Shelf-life 18 mos from date of manufacture at ambient temperature
Storage Before use: Ambient temperature
After use: Ambient temperature or at < 39.2 F (4 C) and analyze within 3 weeks
SO2: ± 30%

NO2: ± 27%

Temperature Effects SO2: No effect on sampling rate from 20 to 25 C

NO2: No effect on sampling rate from 22 to 40 C

Humidity Effects No effect from 20 to 80% relative humidity (RH)
Wind Velocity Velocity Effects No effect from 5 to 100 cm/sec
Interferences None identified
Dimensions 3.4 x 1.1 x 0.35 in (8.6 x 2.8 x 0.89 cm)
Weight 0.38 oz (10.9 gm)
Slide Cover Yellow
