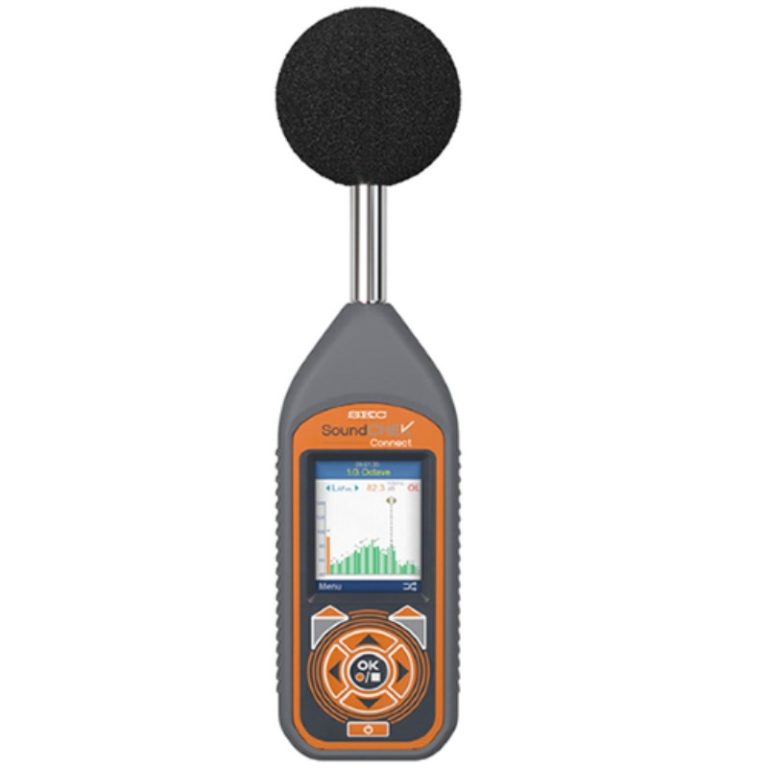

Sound Level Meter SoundCHEK Connect

SKC brings wireless connectivity to sound measurement with SoundCHEK Connect Sound Level Meters. Perform measurements while data stores in your secure cloud account, ready for reporting. SoundCHEK Connect works just as easily in non-wireless environments.

Download Brochure

Key features
• Intuitive operation
• Dual measurements and time histories (as small as 10 ms)
• Wi-Fi connectivity
• All models available in Class 1 and Class 2
• 2.4-inch full-color TFT display
• 7-hour continuous run time on alkaline batteries
• Built-in hearing protection database
• Models available with modules for 1/1 octave band, statistics and event recording, and 1/1-1/3 octave band
• Voice memo standard on all models
• Accurate calibration with SKC AcoustiCHEK Calibrator
• Free cloud data storage
• Meets ANSI S1.4 2014 and IEC 61672-1:2013 Class 2
Technical Specifications
• Measuring Range: 30 to 140 dB and Peak level from 40 to 143 dB
• Frequency Range: 20 Hz to 20 kHz
• Frequency Weighting: A, C, and Z
• Response Time: Fast, Slow, and Impulse
• Exchange Rate: 3, 4, 5, and 6 dB
• Threshold Level: Off, 70, 75, 80, 85 dB
• Measurement Channels: 2
• Parameters: see the table below
• Datalogging/Time History: Dual Time-history: 10ms to 24-hour interval options (Short) and 1s to 24-hour (Long)
• Memory: 32 GB
• Dimensions, 8.3 x 2.8 x 1.2 in (21 x 7.1 x 3 cm), includes microphone
• Weight: 305 grams without battery
• Power: 4 AA alkaline batteries or USB
