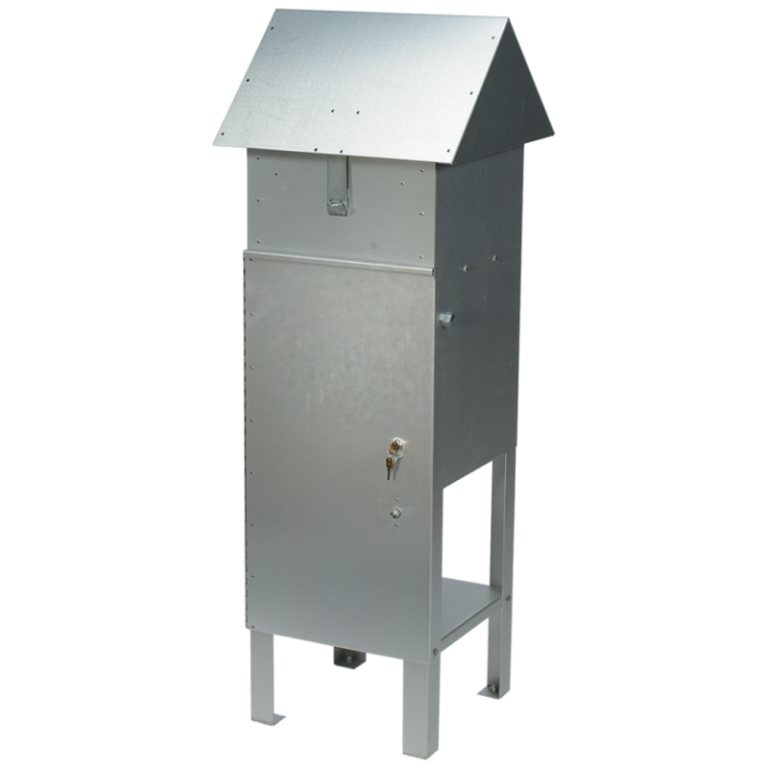

HVP-2000 Series


This unit is built around a two stage centrifugal fan type brushed blower. The tangential discharge exhaust allows a higher maximum flow rate than other similar types of units. To reduce motor winding burn out, the HVP-2000 has a separate motor cooling fan. Brush-life will range between 600 to 1,000 hours depending on sampling mo- tor speed. Motor brushes can be changed in the field within 15 to 20 minutes with a screwdriver.

Product Highlights

  • TSP HI-Vols
  • 2-Stage, Brushed Blower
  • Adjustable Flow Rate
  • Elapsed, Resettable Timer
  • Instantaneous Flow Reading
  • For Continuous Use
  • PM-10 Adaptable!
  • Applicable to EPA’s 40 CFR, 50, App. B
Download Brochure


Motor/Pump: Brushed, 2-Stage Centrifugal Blower.
Housing: Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof.
Calibrated Flow Range: (HVP-2000)  10-50 CFM (CMM or LPM unit calibration upon request)
Calibrated Flow Range: (HVP-2004BRL) 5-30 CFM (CMM or LPM unit calibration upon request)
Elapsed Timer: Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery.
Unit Net Weight: 57 lbs.
Shipping Weights &
20” x 20” x 50” @ 52 lbs. (Box 1)
18” x 18” x 24” @ 10 lbs. (Box 2)
HVP-2000/4BRL Power Specifications: 115 VAC, 50/60Hz.,10 Amp
230 VAC, 50/60Hz., 5.0 Amp
Flow Calibrator: See Air Flow Calibrators
Filter Paper: See Filter Paper For Air Sampling
PM-10: See Size Selective Inlets
Options: Modular Cabinet Design, Automatic Filter Shield, 8” x 10” Filter Cartridge, Continuous Flow/Pressure Recorder, Electronic & Mechanical Skip Timers & more.
