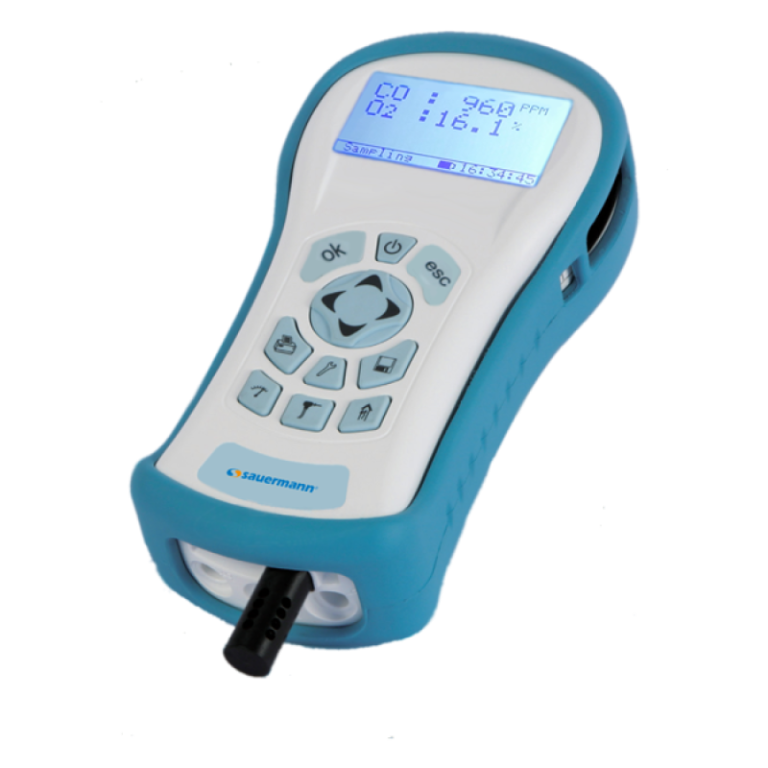

INSTRUMENT DIMENSIONS
-
Length : 100 mm
-
Width : 52 mm
-
Height : 220 mm
-
Weight : 725 g
MEASURE DETAILS
-
Units : ft/sec, inH₂O, mg/m³, ppb, °F, μg/m³, °C, % RH, %, ppm, mbar
MEASURING RANGES
-
Low Range VOC : 0.00 ppb … 20000.00 ppb
-
Low Range VOC : 0.00 mcg/m³ … 46000.00 mcg/m³
-
High Range VOC : 0.00 ppm … 200.00 ppm
-
High Range VOC : 0.00 mg/m³ … 460.00 mg/m³
-
Relative humidity : 5.00 % RH … 95.00 % RH
-
Ambient temperature : -40.00 °F … 257.00 °F
-
Ambient temperature : -40.00 °C … 125.00 °C
-
Barometric Pressure : 260.00 mbar … 1260.00 mbar
-
Differential Pressure : -40.00 inH₂O … 40.00 inH₂O
-
Differential Pressure : -100.00 mbar … 100.00 mbar
-
Temperature Type K T1 : 0.00 °F … 2000.00 °F
-
Temperature Type K T1 : 0.00 °C … 1100.00 °C
-
Air Velocity : 0.00 m/s … 91.00 m/s
-
Air Velocity : 0.00 ft/sec … 300.00 ft/sec
-
CO2 : 0.00 ppm … 5000.00 ppm
-
CO : 0.00 ppm … 200.00 ppm
-
CH2O (Formaldehyde) : 0.00 ppb … 10000.00 ppb
-
H2S : 0.00 ppm … 100.00 ppm
-
NO2 : 0.00 ppm … 20.00 ppm
-
O2 : 0.00 % … 25.00 %
-
SO2 : 0.00 ppm … 20.00 ppm
-
NO : 0.00 ppm … 250.00 ppm
TECHNICAL DETAILS
-
Parameters : Air quality
-
Battery life : 12 hours
-
Power supply : 12 Volt, 8 AH rechargeable Li-Ion battery pack
-
Protective cover : 1
-
Protective cover : No
-
Interchangeable module : No
