DR2000 FLYING LAB

DR2000 Drone Based Environmental Monitoring

After years of testing and client feedback, we have improved upon the DR1000 technology in several ways. A weight reduction down to ~600g now allows for a much more diverse drone portfolio.

Intelligent Flying Air Quality Monitoring Laboratory

The DR2000 measures gases using a series of sensors based on application. With a library of over 50 sensors, Scentroid has every sensory requirement covered. Each DR2000 unit can be equipped with:

  • 4 Electrochemical , 1 NDIR sensor (CO2), 1 PID sensor (VOC), 1 MOS, and PM 1, PM 2.5, PM 4 and PM 10
  • Volatile organic compound sensing using photo-ionization technology
  • C02, Methane, or Nitrous oxide using a non-dispersive infrared sensor
  • Sensing capabilities for particulates PM 1, PM 2.5, and PM 10
  • Total Reduced Sulfurs (or TRS), along with other contaminants using our Metal Oxide technology
  • Temperature, humidity, and barometric pressure
  • High accuracy GPS recording
  • High accuracy altitude measurements

Recommended Drones:

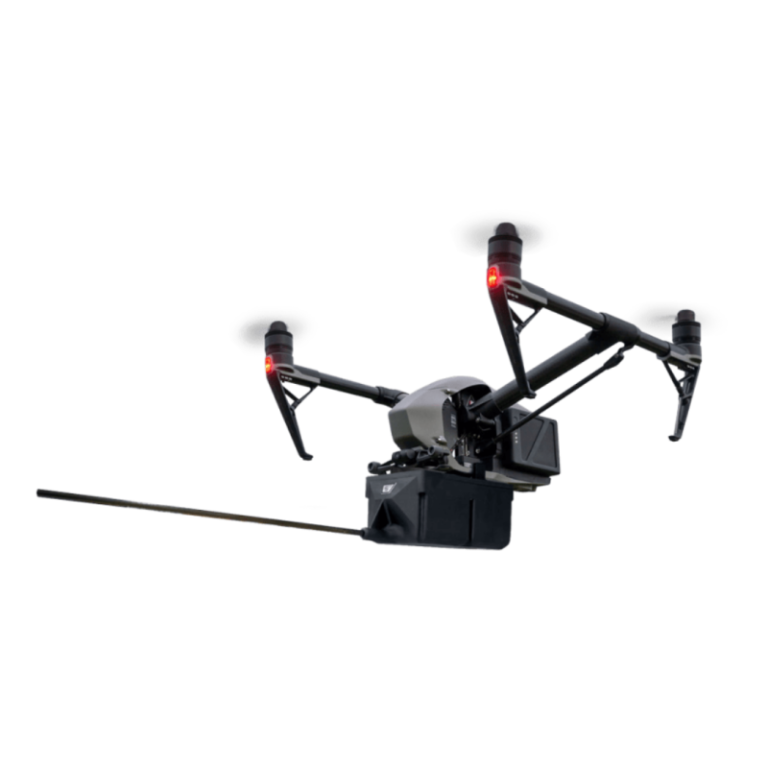

Due to its new lightweight design, the DR2000 Drone-Based Environmental Monitoring companion can now be mounted to a much wider series of drones. Our system is completely self-contained and requires nothing from the attached drone except to operate solely as a vehicle. Although it can be attached to many drones, we feature it being used with the DJI Inspire 2.

Reliability of the DR2000 Drone-Based Environmental Monitor

The DR2000 provides 3 levels of data storage:
Storage of data on pre-installed SD card
Transmission and storage of data on the on-ground station
Transmission and storage of data on the cloud/localized server

DR2000 Cloud-Based Hosting

The central monitoring station is hosted on a secure cloud-based server, allowing remote access with any smart device that is connected to the internet. The access is restricted and the data is encrypted for maximum security. Users are given an identification and password combination which will define their permission level. For example, a standard user who accesses the platform is only able to view and download the results, while a user with administrator access can reconfigure the system and redefine parameters.
The monitoring station is designed to collect all data from the sensors and present the sensor data in an easy to understand graphical interface.

Utilizing the DR2000 Flying Laboratory’s Local Server

DR2000 can be configured so that the native DRIMS2 software is hosted on a local server, specified by the user. This server must have an adequate connection to a secure Wi-Fi or LAN network. Scentroid will provide all the necessary hardware and software to set up a local server. This option includes Computer hardware, DRIMS2 software, Ethernet hub.

RF Communication (LoRa)

The DR2000 communicates with the Ground Station using a long-range LoRa protocol. LoRa provides full encryption and data verification to ensure all communications are secured and accurate. Using license-free sub-gigahertz radio frequency bands, LoRa enables long-range transmissions (more than 10 km in rural areas) with low power consumption. With a line of sight range of 10 Km, the DR2000 can send data back to the ground stations in any environment.

The data is stored on the ground station and synced through any Wi-Fi network to Scentroid’s powerful Drone Information Management System (DRIMS 2).

Maximum Sensors: 6 (Click here for full sensor list)
Type of Sensors: PID, NDIR, EC, laser particulate counter, MOS

DR2000 Package Includes:

DR2000 Analyzer
Ground Station Receiver
Ground Station
Carbon Fibre Probe
Charge Adaptor

*Does not include drone

Sampling Rate: 100 Hz
Sampling Ports: 1 to 2
Data Transmission: Transmits at a rate of 1Hz
Weight: 520g – 640g
Size: 23 cm x 10.8 cm x 10.3 cm
Casing: Carbon Fibre Design
Communication: LoRa 2 Way encrypted
On-Board Data Storage: 64gb SD Card
Cloud Server: Scentroid’s Advanced DRIMS2 Platform
Ground Station: 10” Tablet with LoRa communication capabilities
Software: Free 1-year subscription to DRIMS2 (Drone Information Management System)
Temperature Range: Recommended Operating temperature 0-50C
Automatic Calibration: Auto-Zero before a flight. Automated calibration using an optimized GD600 System.
Warranty: 24 months full warranty on all parts including sensors
Sensor Replacement: Sensor dependent; first 2 years are covered by warranty
Mounting Hardware: Customized mounting hardware based off of the drone
