Ultrasonic Flow Meter PCE-TDS 200 M

Highlights

– Measuring range ±32 m/s
– USB-C interface for data transfer
– Optional software for analysing the measured values
– Reproducibility ±0.5 % of measured value
– Heat quantity measurement
– Data memory for 10 million measuring points
– individually adjustable alarm limits
– optionally with ISO or DAkkS calibration certificate

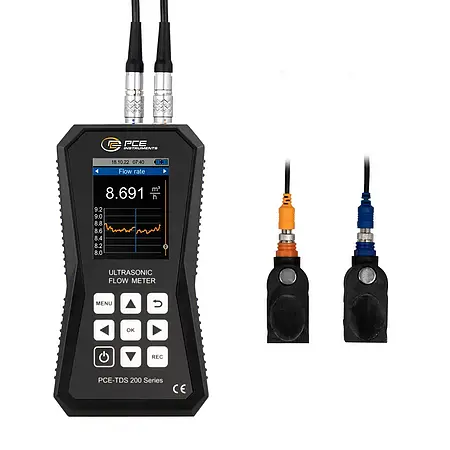

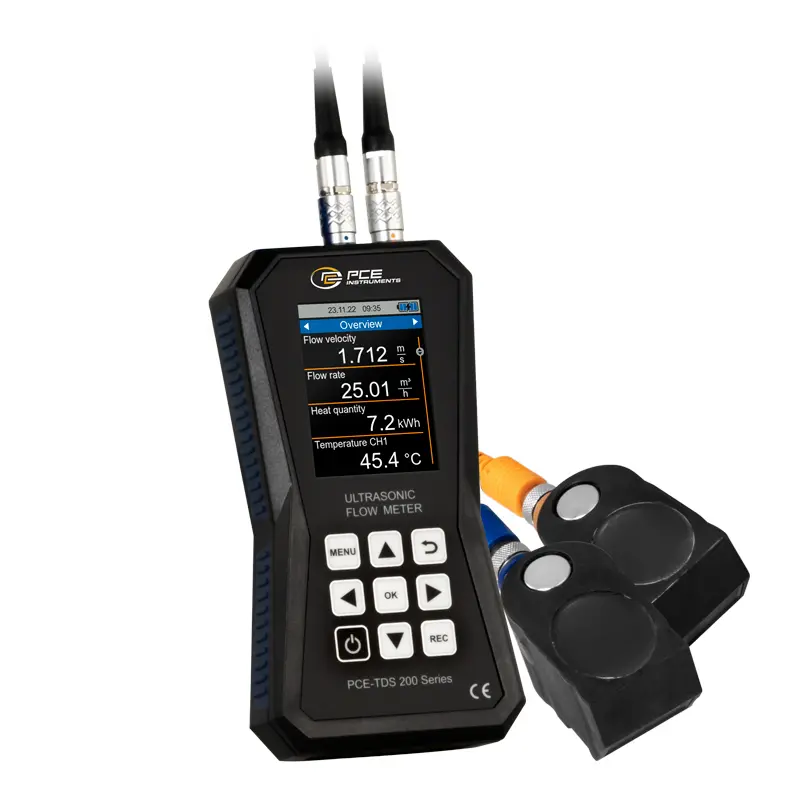

Ultrasonic Flow Meter PCE-TDS 200+

This device stores up to 10 million measurement points on its 32 GB internal memory. With optional software, recorded data can be viewed in table or graph format, exported as a .CSV file, or compiled into a PDF report. The software also enables live data view and simplified device setup.

For heat quantity measurement, two additional thermocouples are required (included with the PCE-TDS 200+). These are installed on the supply and return pipes. Using the temperature difference and flow rate, the device calculates heat energy and, if needed, displays cost per unit in real time—ideal for heating system inspections.

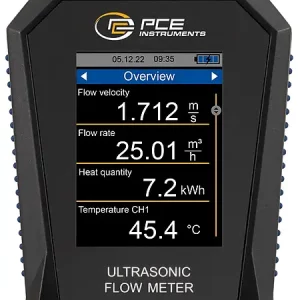

The 2.8″ color LC display ensures easy readability. ISO or DAkkS calibration certificates are optionally available.

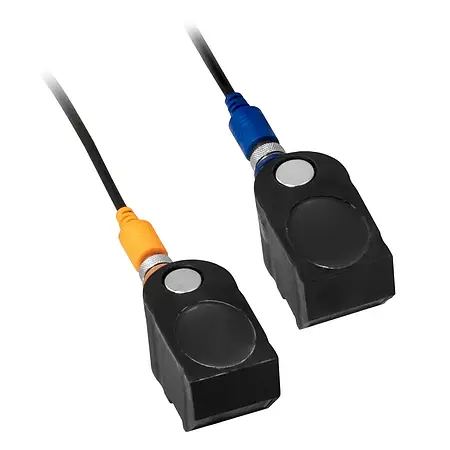

Sensor PCE-TDS 200 M

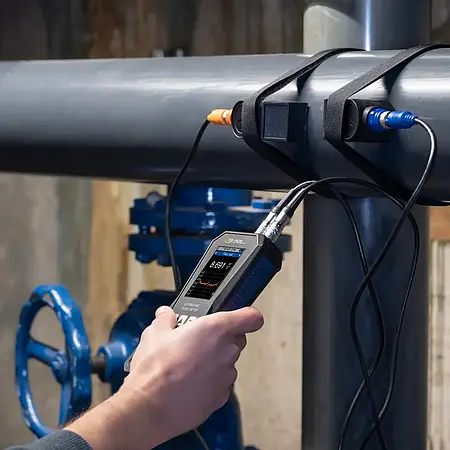

Designed for pipe diameters DN 50–700 mm (57–720 mm), suitable for medium-sized pipes. Sensors attach via built-in magnets or detachable cable ties. Temperature range: -30 to 160 °C.
