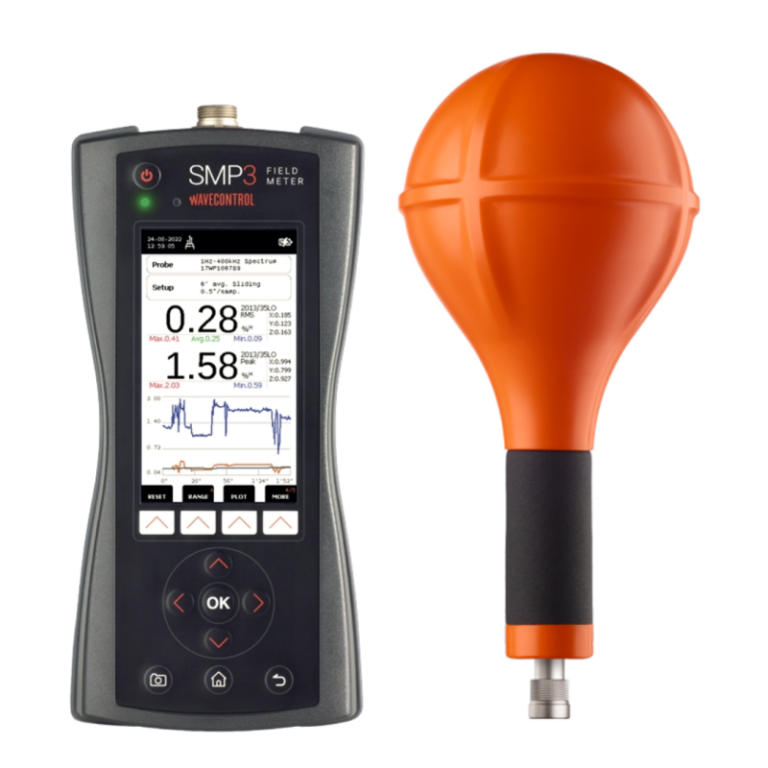

SMP3 FIELD METER FEATURES

• 3-in-1 Field Meter: spectrum analysis (DC – 10 Mhz), broadband (DC – 60 GHz) and static field measurements.
• Real-time FFT-based spectrum analysis using digital processing.
• Weighted Peak Method (WPM) for automatic and real time comparison with limits.
• Special auto-gain function for peak detection (indispensable for procedures such as welding).
• Display of results in RMS and peak values.
• Function for time domain measurement of a specific frequency.
• Automatic field probe recognition.
• E&H field selection.
• Total field value and value for each component (X, Y, Z).
• Frequency SPAN selection.
• High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.
• Max-hold function.
• Display of maximum, minimum and average values.
• Sliding window function according to standards.
• Spatial average function.
• Adjustable measurement time from 1s to 100 hours.
• Programmable measurement to start at a given time.
• Graphic display of broadband measurement changes over time.
• Adjustable graph display from 1 s to 12 minutes.
• Programmable alarm function.
• Digital output for real time external measurements.
• USB-C and fibre optics connection.
• Large storage capacity.
• Screen-shot function for reporting.
• PC software for control and reporting.
• Results can be uploaded automatically to a web-page control centre.
• Available in several languages.
