– Adjustable units: mg / l, ppm
– Up to 7 selectable parameters
– Bluetooth connection with app
– Exchangeable and lockable cuvette
– 503 nm / 570 nm / 620 nm LED
– Automatic shutdown when inactive
– Many different menu languages
– Light detector: photodiode
– Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
PCE-CP 20

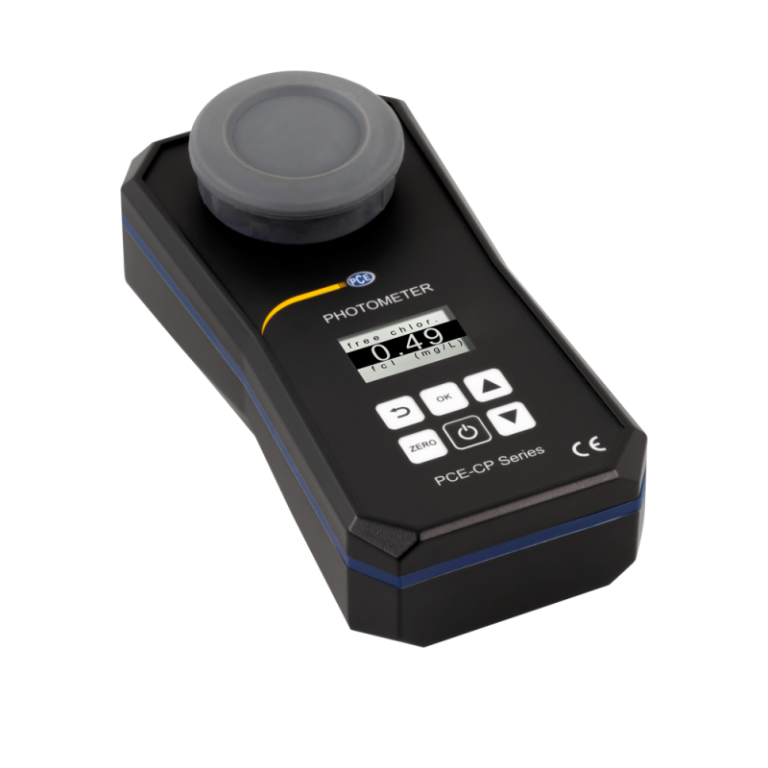

Water analysis meter PCE-CP 20
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 7 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values
The multi-parameter water analysis meter is a mobile measuring device for liquid analysis. This enables the most varied of measurements to be carried out with the multi-parameter water analysis meter. With this multi-parameter water analysis meter, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter water analysis meter, a water sample of 10 ml must be placed in a cuvette. The built-in LED in the multi-parameter water analysis meter generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.
Each measurement is automatically saved by the multi-parameter water analysis meter. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter water analysis meter. A free app is available to analyze the measured values from the multi-parameter water analysis meter. It is also possible to establish a Bluetooth connection between the multi-parameter water analysis meter and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter water analysis meter, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter water analysis meter is also free of charge.
Alkalinity | |
Measuring range | 0… 30 mg / l |
30… 60 mg / l | |
60… 100 mg / l | |
100… 200 mg / l | |
Accuracy | 3 mg / l |
7 mg / l | |
12 mg / l | |
18 mg / l | |
Resolution | 1 mg / l |
Chlorine | |
Measuring range | 0.00 … 2.00 mg / l |
2.00 … 3.00 mg / l | |
3.00 … 4.00 mg / l | |
4.00 … 8.00 mg / l | |
Accuracy | 0.10 mg / l |
0.23 mg / l | |
0.75 mg / l | |
1.00 mg / l | |
Resolution | 0.01 mg / l |
Cyanuric acid | |
Measuring range | 0… 15 mg / l |
15… 50 mg / l | |
50… 120 mg / l | |
120… 160 mg / l | |
Accuracy | 1 mg / l |
5 mg / l | |
13 mg / l | |
19 mg / l | |
Resolution | 1 mg / l |
pH | |
Measuring range | 6.50 … 8.40 pH |
Accuracy | 0.11 pH |
Resolution | 0.01 pH |
Total hardness | |
Measuring range | 0… 30 mg / l |
30… 60 mg / l | |
60… 100 mg / l | |
100… 200 mg / l | |
200 … 300 mg / l | |
300 … 500 mg / l | |
Accuracy | 3 mg / l |
5 mg / l | |
10 mg / l | |
17 mg / l | |
22 mg / l | |
58 mg / l | |
Resolution | 1 mg / l |
Calcium hardness | |
Measuring range | 0… 25 mg / l |
25… 100 mg / l | |
100 … 300 mg / l | |
300 … 500 mg / l | |
Accuracy | 8 mg / l |
22 mg / l | |
34 mg / l | |
45 mg / l | |
Resolution | 1 mg / l |
Further specification | |
Unit | mg / l, ppm |
Hardness units | mg / l CaCO3, ppm, mmol / l KS 4.3, ° dH (degree of German hardness), ° e (degree of English hardness / degree Clark), ° f (degree of French hardness) |
Calibration | Zero point calibration |
Light source | 503 nm / 570 nm / 620 nm LED |
Light detector | Photodiode |
Power supply | 4 x 1.5V AA batteries |
Dimensions of the cuvette | 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml) |
Menu languages | English, German, French, Spanish and Italian |
Storage | Automatic storage of measured values and readout |
Storage space | 256 values |
Interface | Bluetooth connection with app and PC software |
Automatic shutdown | After 300 seconds of inactivity |
Operating conditions | 5… 45°C, 20 … 90% RH non-condensing |
Storage conditions | 5… 45°C, 20 … 90% RH non-condensing |
Dimensions | 165 x 95 x 50 mm / 6.5 x 3.7 x 2 in |
Weight | 230 g / < 1 lb |
