Specifications
| Motor/Pump: | Brushless, 2 or 3 Stage Centrifugal Blower. For motor specification see product description under Replacement Blowers. |

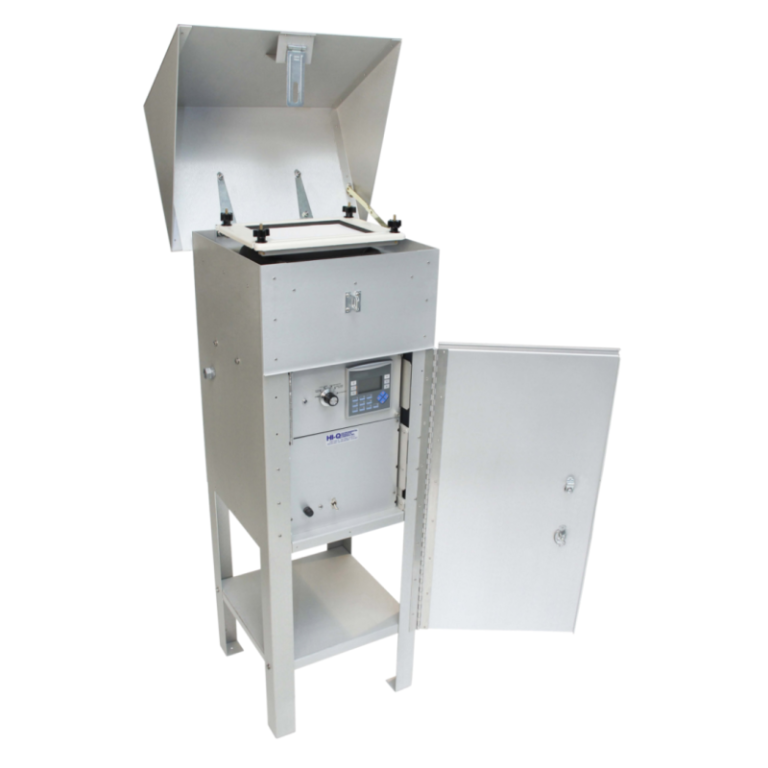

| Housing: | Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof. See model # HVP-2000 for overall cabinet dimensions. Modular Cabinet Design Option Available. |
| Display: | Illuminated, Graphic LCD Screen |
| Calibrated Flow Range: (HVP-5300/5200AFC) | 10-50 SCFM (SCMM or SLPM unit calibration upon request) |
| Calibrated Flow Range: (HVP-5304/5204AFC) | 2-15 SCFM (SCMM or SLPM unit calibration upon request) |
| Flow Totalizer: | Default to Resettable Standard Cubic Feet (total volume in cubic meters or liters upon request) |
| Elapsed Time: | Minutes and Tenths of Minutes |
| Unit Net Weight: | 58 lbs. |
| Shipping Weights & Dimensions: | 20” x 20” x 50” @ 55 lbs. (Box 1) 18” x 18” x 24” @ 11 lbs. (Box 2) |
| HVP-5300/4AFC Power Specifications: |
115 VAC, 50/60 Hz., 10 Amp, 800 Watt / Max Vacuum Capacity 85” H20 230 VAC, 50/60 Hz., 10.5 Amp, 1200 Watt / Max Vacuum Capacity 118” H20 |
| HVP-5200/4AFC Power Specifications: |
115 VAC, 50/60Hz., 5.0 Amp, 250 Watt / Max Vacuum Capacity 49” H20 230 VAC, 50/60Hz., 4.5 Amp, 400 Watt / Max Vacuum Capacity 39” H20 |
| Flow Calibrator: | See Air Flow Calibrators |
| Filter Paper: | See Filter Paper For Air Sampling |
| PM-10: | See Size Selective Inlets |
| Options: | Volumetric Flow Control, Modular Cabinet Design, Automatic Filter Shield, 8” x 10” Filter Cartridge, Data & Barcode Printer, SMS Messaging, Analog Output & more… |
