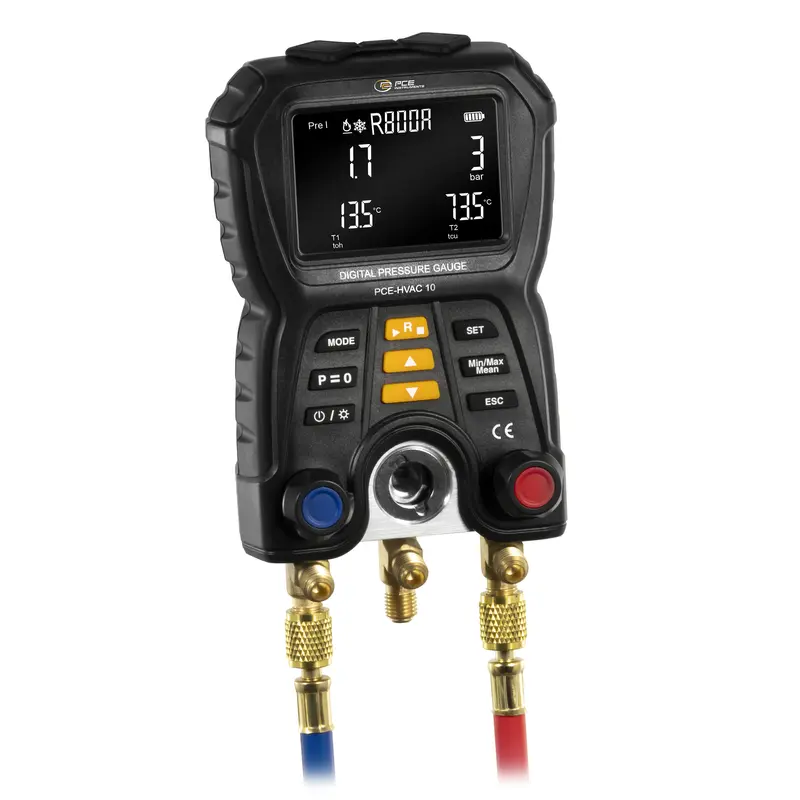

Condition Monitoring Manifold PCE-HVAC 10

Highlights

– Measurement Range: -1 … +60 bar
– Resolution: 0.01 bar
– Accuracy: ±0.5% FS (Full Scale).
– 83 refrigerants stored in the device
– 2-way valve block with 3 connectors 7/16″ – UNF
– Includes 2 NTC clamp-on temperature sensors
– Temperature measurement from -10 … +200 °C

Condition Monitoring Manifold – PCE Instruments

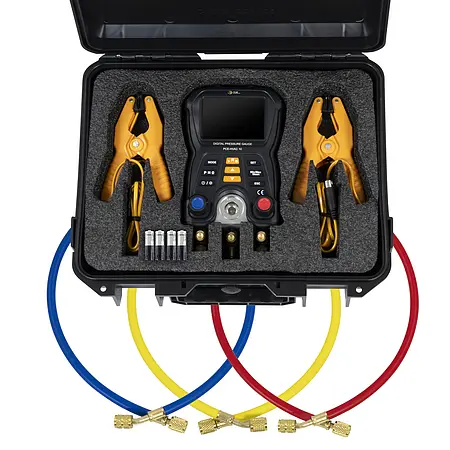

Robust HVAC tool in a metal housing for pressure (-1 to +60 bar) and temperature (-10 to +200 °C) measurement. Features a 2-way valve block with 3 connectors (7/16″ – UNF), clamp-on NTC sensors, and hanging fixture.

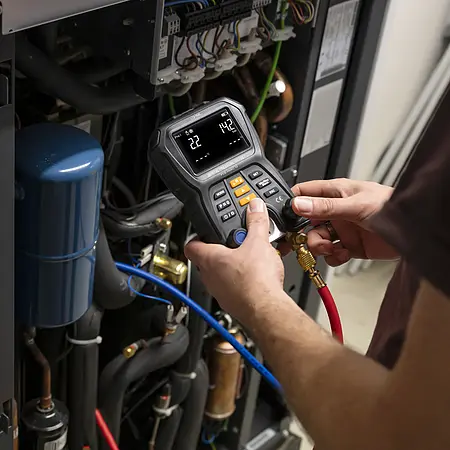

Ideal for installation, maintenance, and optimization of refrigeration and heat pump systems. Supports 83 refrigerants (e.g., R410a, R32, R22, R1234YF). Includes automatic heat pump mode and temperature-compensated leak test.

All values are shown simultaneously on a clear display. ISO-adjustable and calibratable. Powered by 4×AA batteries for mobile use.
