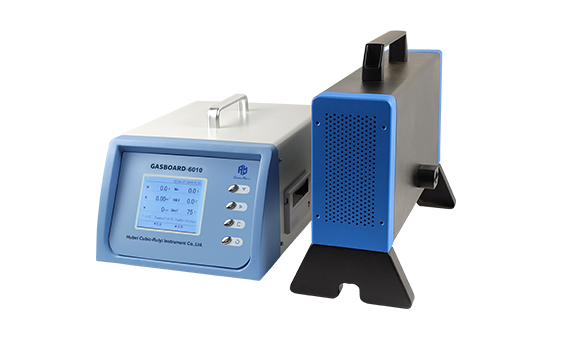

Gasboard-6010 opacity meter provides a simple and accurate way to measure the opacity of smoke emitted from diesel vehicle by partial flow technology. This model can measure the complete opacity spectrum from 0-100% in either continuous or free acceleration test.
Alat Uji Emisi Solar Gasboard-6010
Features
- Real-time display of N value and K value
- Partial flow technology ensures high accuracy
- Module sensor design for easy maintenance.
- Outstanding accuracy, stability and durability
- Auto-zero calibration with fresh air
- RS-232 communication
- Optional Built-in printer
| Measurement | Opacity degree N value,
light absorption coefficient K value |
| Technology | Partial flow sampling-type |
| Measuring range | N Value:(0-99.99)%
K Value:0-16m-1 |
| Resolution | N Value:0.01%
K Value:0.10% |
| Accuracy | ±2.0% |
| Warm-up time | 15 minutes |
| Display | LCD display |
| Response time | 1 ±0.1second |
| Power | AC220V±10% 50Hz±1Hz |
| Operation temperture | 0-40℃ |
| Dimension | Display:
450mm*260mm*180mm(L*W*H) Opacity meter: 460mm*230mm*465mm(L*W*H) |
| Weight | Display: 5kg,    Opacity meter:7kg |
| Standard accessories | Sampling pipe,
smpling probe and handle communication cable, RS-232 cable,  power cable |
| Options | Inbuilt printer, RPM measurement |
